ACCESS 30 36/22

AA3250

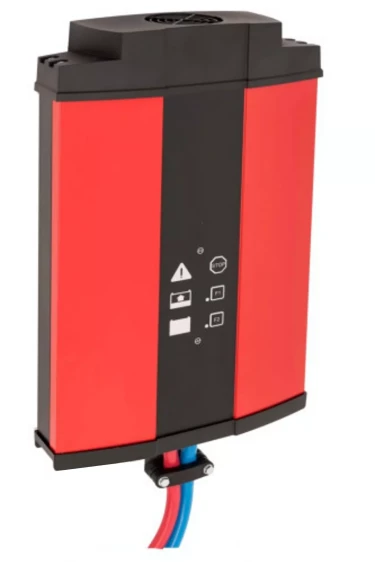

Access 30 36V/22A industrial battery charger with fan.

Data sheet

Download datasheet

Output Voltage

36 V

Output Current

22 A

Number of phases

Rated Voltage range

220-240 V

Shipping Weight

6 kg

Ingress protection

IP54 (IP66 optional)

Certifications

Reporting

Yes

Current at nominal voltage

4,6 A

8 Hours cap.ah/5h

187

12 Hours cap.ah/5h

302

Cabinet Type

A10

Access 30 is a 1-phase industrial battery charger with fan and capacity up to 3 kW. Access 30 without display has an IP54 enclosure, designed for harsh environments. As an option it can be delivered with an IP66 enclosure.

THE ACCESS SERIES

The Access series of industrial High Frequency battery charger from Micropower provides you with powerful and energy efficient battery charging and wireless communication. The modern state of the art MOSFET power conversion circuit efficiently and accurately converts AC power to the proper DC power levels required to charge different kinds of industrial batteries. Every Access charger can be set to perform both conventional charging and various levels of opportunity charging. There are several different charging curves available, such as for ionic mixing and opportunity charging, preprogrammed into every Access charger.

COMMUNICATION

The Access charger is equipped with a radio transceiver that allows the charger to communicate with other chargers, with the Access BMU and Access Gateway. Using the Access BMU and Access Gateway allows you to gather and organize battery and charging data to help you optimize your battery fleet.

ACCESS CONTROL

The Access charger is easily programmed to perform a variety of functions the way you want them performed. It constantly monitors the condition of the battery and automatically compensates for variations in battery temperature, age of the battery, and the battery’s condition.

BEST BATTERY CHOICE

The Access charger can help you to select the best battery available in the charging room. The selection is made in order to ensure that all batteries are equally used and helps to promote best and coldest battery which has been ready the longest time. You can set up several groups of different battery sizes (V/Ah). This feature is standard in all Access chargers and can be implemented without additional hardware or software.

OTHER FEATURES

– Energy efficient MOSFET design.
– Possibility to add three charge block-out periods to avoid times of peak demand and optimize energy cost if time of day billing are in use.
– Monday morning refresh charging.
– Wireless maximum power. This feature makes it possible to limit total power consumption for a group of chargers.
– Automatically equalizing cycles to ensure maximum lifetime for the battery.

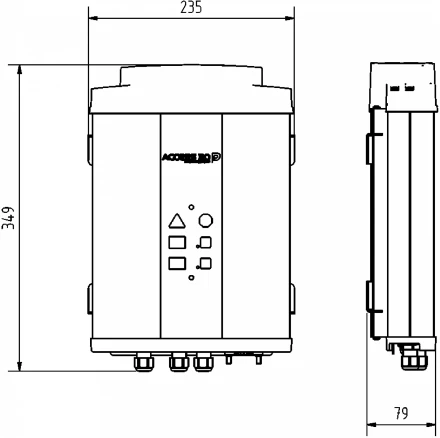

A10

349 X 235 X 79

Air Pump

An alternative to ionic mixing where air bubbles are used to mix the battery acid. The air pump is fully integrated in the battery charger.

Automatic water filling

All our industrial High Frequency battery chargers can be equipped with a solenoid valve which is connected to the batteries water filling system. The system will automatically refill water into the battery when needed.

Safe Disconnect

All our industrial High Frequency battery chargers will automatically start when the battery charger is connected to the battery. Likewise it will automatically stop when the charger is disconnected. This option eliminates the risk of sparks when disconnecting the battery charger.

Battery Monitoring Unit (BMU)

Works seamlessly with Micropower Access chargers

When paired with any Micropower Access charger, the BMU handles charger configuration directly. Temperature monitoring is a mandatory input to the charger for fast and opportunity charging. The BMU also indicates charging capacity and cycle life, providing the information needed for efficient, long-term battery usage.

NFC technology for instant access

Through Near Field Communication, data collected by the BMU is accessible from any Android phone. Just download the BMU mobile app, select the battery, and the data is in your hand. Data can also be retrieved via the Access Service Tool on any PC, then downloaded and transformed into graphs for battery fleet planning.

Improved features

State of charge indicator: Use the battery until charging is actually necessary
Real backup for time and date settings: Eliminates statistical log errors
New nail connectors: Prevent acid intrusion
Flexible current sensor options: Up to >300A

Available in multiple models

The BMU comes in various models to match any lead/acid battery fleet - flooded or dry, soldered or bolted connectors.

For technical specifications, click here to learn more.
