DX14
HC1422-D10000
Data sheet
Output Voltage
12
V
Input Voltage
24
V
Ingress protection
IP67
Weight
0.8
kg
Developed for demanding industrial and mobile applications, the DX14 uses advanced switch mode MOSFET power conversion technology to actively regulate the battery midpoint while delivering up to 100 A at 12 V with an efficiency of 96 % at rated power. This ensures stable 12 V power availability while protecting the lifetime, and availability of the 24 V battery system in machines where both voltage levels are required.
Key benefits
- Actively maintains battery balance in 24 V systems with series connected 12 V batteries
- Enables safe and efficient supply of high current 12 V loads from a 24 V battery bank
- Reduces risk of uneven discharge, capacity loss, and premature battery failure
- High efficiency minimizes thermal losses and improves overall energy utilization
- IP67 rated, compact, and robust design for harsh industrial and mobile environments
Applications
The Micropower DX14 DC-DC equalizer is designed for industrial machines and vehicles that operate with mixed 12 V and 24 V electrical architectures powered by a single 24 V battery system. Typical applications include construction equipment, off highway vehicles, forestry and agricultural machinery, material handling equipment, and other industrial mobile industrial machines.

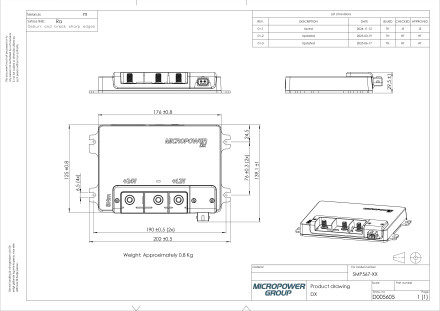

DX
202 × 139,1 × 25,5mm
