SHARP 11
SHARP 11

SHARP 11 24/40

S12300

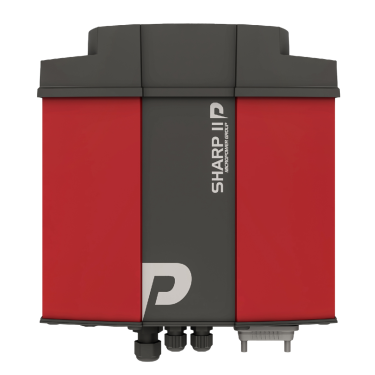

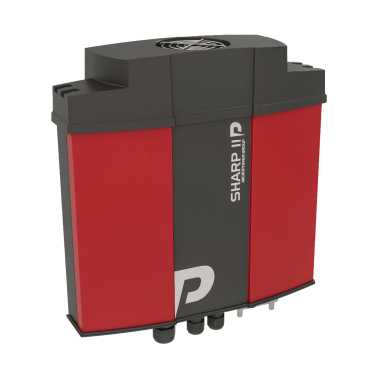

Sharp 11 24V/40A industrial battery charger.

Data sheet

Output Voltage
24 V
Output Current
40 A
Number of phases
1
Rated Voltage range
220-240 V
Ingress protection
IP54 (IP66 optional)
Certifications
CE
Current at nominal voltage
5,6 A
8 Hours cap.ah/5h
340
12 Hours cap.ah/5h
550
Cabinet Type
S40
Path 14
Sharp 11 is a 1-phase industrial battery charger with capacity up to 1,1 kW. The charger is a robust onboard battery charger, suitable for harsh environments, with IP20.

SHARP SERIES

The Sharp series consists of energy-efficient High Frequency industrial battery chargers. They are regulated, primary switched chargers with charging curves that suit most battery types and applications. The charging process is optimized so that the battery is fully charged in the shortest time possible, with as low water consumption and wear on the battery as possible. Many of the Sharp chargers are a perfect choice for onboard charging.

CHARGING

The Sharp battery chargers are controlled by the integrated microcomputer. The chargers are equipped with 1 to 3 charging curves as standard, including in most models one with ionic mixing, which efficiently reduces the charging time.

STATUS

Charging progress is indicated by a diode that glows orange during charging, green at full charge and flashes red if an error occurs.

SAFETY FUNCTIONS

– The charger requires a counter voltage from a battery in order to start.
– The outlet is protected electronically against faulty connections and short-circuit.
– The charger works with different shutoff times. If these times are exceeded, the charger is turned off.
– Automatic output limitation if cooling is insufficient.
– Soft start before the charger reaches full output.

S40

262 x 232 x 80

Safe Disconnect

All our industrial High Frequency battery chargers will automatically start when the battery charger is connected to the battery. Likewise it will automatically stop when the charger is disconnected. This option eliminates the risk of sparks when disconnecting the battery charger.
