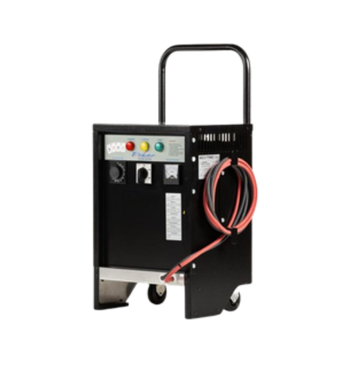

Poker Shop Charger
Data sheet
Straightforward in operation and built for daily use, the Poker is a reliable companion for pallet jacks, forklifts and other electric industrial vehicles.
A clearly labelled selector switch sets the correct output voltage, and charging is controlled by a dependable timer that can be adjusted from 0 to 24 hours. There is no programming involved and nothing unnecessary in the design. A built-in ammeter displays the charging current, while three indicator lamps provide a clear view of the charging status at all times.
The charger is designed for mobility. Equipped with wheels, a cart handle and integrated cable storage, it moves easily between service bays, loaner batteries and rental returns. It operates from a standard 120V wall outlet and requires no special installation, allowing it to be used anywhere in the shop.
Downloads
- Compatibility: 12V, 24V, 36V and 48V lead-acid batteries
- Output ratings: 12V/60A (up to 480Ah), 24V/45A (360Ah), 36V/30A (240Ah), 48V/25A (200Ah)
- AC input: 120V AC ±5%, UL-listed 20A input fuse, 15A max input current, NEMA 5-15 cable
- Control: 0 to 24 hour adjustable timer with voltage selector switch
- Monitoring: 100A/100mV ammeter, indicator lamps for charging, power and pause
- Auxiliary: 24V AC auxiliary circuit with overload cutout and 1.6A fuse
- Dimensions (W x H x D): 15.7" x 33.5" x 12.6" (23.6" high without handlebar)
- Weight: 88 lbs (40 kg)
- Included: Wheel mount, cart handle, DC cable storage support
- Suitable for: Maintenance shops, rental fleets, truck dealers, battery rooms
