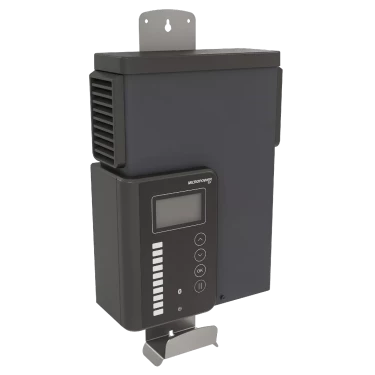

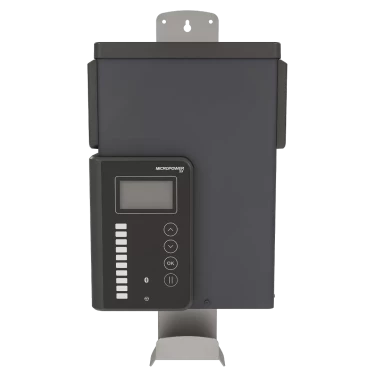

Micropower SX23 48/40
WN4300-A1
Data sheet
The charger series is simple and fast to install, with a pre-mounted wall bracket and a keyhole on top for easy mounting using a cordless screwdriver. A cable holder is also included, eliminating the need for additional purchases or installation costs. Micropower SX simplifies installation and reduces both downtime and the total cost.
Configuring the Micropower SX is made easy with the GET app, which connects via Bluetooth. Through the app, users can quickly check, change, copy, and send configurations between devices.
Micropower SX Series
The Micropower SX charger series offers maximum flexibility, providing the option to choose from multiple charging algorithms. Compatible with a wide range of accessories from Micropower, such as the Battery Monitoring Unit, Air-pump, and Aquamatic, this battery charger allows for enhanced functionality. Additionally, the nominal voltage can be adjusted and lowered to a minimum of 5V.Smart Software Functionality
Embedded within the charger range is advanced software functionality, including features such as Dynamic Power Limitation and Best Battery Choice. Moreover, the series is fully compatible with Micropower's GET fleet management system, facilitating the optimization and control of battery and charging fleets. Connectivity options include radio, Bluetooth, and USB portal.Ruggedized Product Design
The product design features optimized airflow and coating for enhanced durability and performance. The airflow system is shielded from humidity and dirt while incorporating circuit control mechanisms. Furthermore, a selective coating protects sensitive components with an acid- and oil-resistant material, ensuring consistent high-quality performance in the Micropower SX charger series.Other Features
- High power factor of 0.98
- High efficiency >90%
- Low standby power consumption <5W
A51

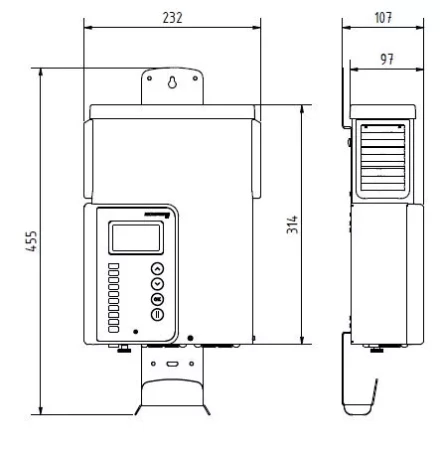

314 x 232 x 97
Air Pump
An alternative to ionic mixing where air bubbles are used to mix the battery acid. The air pump is fully integrated in the battery charger.
I/O Card
I/O cards can be equipped with up to 5 individual relays and can be used to control various functions such as an external LED-indicator, stacking beacon for charger status and remote start.
Automatic water filling
All our industrial High Frequency battery chargers can be equipped with a solenoid valve which is connected to the batteries water filling system. The system will automatically refill water into the battery when needed.
Safe Disconnect
All our industrial High Frequency battery chargers will automatically start when the battery charger is connected to the battery. Likewise it will automatically stop when the charger is disconnected. This option eliminates the risk of sparks when disconnecting the battery charger.
Battery Monitoring Unit (BMU)
Works seamlessly with Micropower Access chargers
When paired with any Micropower Access charger, the BMU handles charger configuration directly. Temperature monitoring is a mandatory input to the charger for fast and opportunity charging. The BMU also indicates charging capacity and cycle life, providing the information needed for efficient, long-term battery usage.NFC technology for instant access
Through Near Field Communication, data collected by the BMU is accessible from any Android phone. Just download the BMU mobile app, select the battery, and the data is in your hand. Data can also be retrieved via the Access Service Tool on any PC, then downloaded and transformed into graphs for battery fleet planning.Improved features
- State of charge indicator: Use the battery until charging is actually necessary
- Real backup for time and date settings: Eliminates statistical log errors
- New nail connectors: Prevent acid intrusion
- Flexible current sensor options: Up to >300A
Available in multiple models
The BMU comes in various models to match any lead/acid battery fleet - flooded or dry, soldered or bolted connectors.Service Tool
The Service Tool allows you to wirelessly download the complete charging statistics from the last 2000 charging cycles with history, events and 7000 momentary measurements. With the Service Tool, you can also program most battery charger's from Micropower and BMU (Battery Monitoring Unit) parameters wirelessly from your PC. For more information please click here.
