Micropower ST* 48/165
LX4559-B1
Data sheet
Output Voltage
48
V
Output Current
165
A
Number of phases
3
Rated Voltage range
380-440
V
Shipping Weight
25
kg
Ingress protection
IP20
Certifications
CE
Current at nominal voltage
15,5
A
Cabinet Type
A19

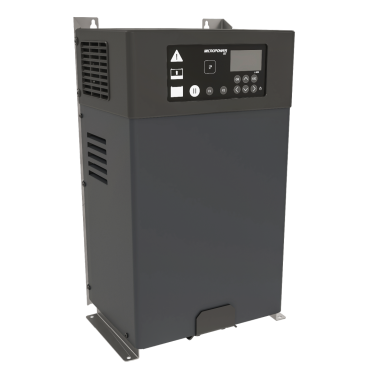

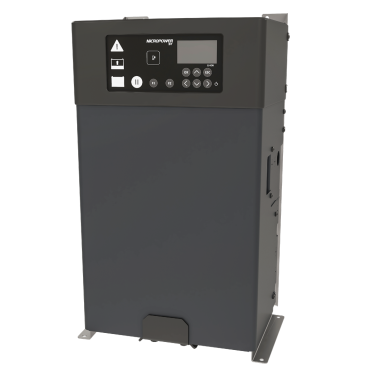

Micropower ST is a 3-phase battery charger with capacities of up to 13 kW. The charger features a compact yet efficient design and functions as a stand-alone unit that can be wall-mounted.
Micropower ST features an intuitive, user-friendly interface designed with operators in mind. It is easily recognizable from a distance, featuring a graphic display and keypad to minimize the risk of misuse.
The charger series is simple and fast to install, with a pre-mounted wall bracket and a keyhole on top for easy mounting. Designed for convenience, it can be mounted using a cordless screwdriver. Additionally, cable holders are included for wall-mounting, eliminating the need for additional purchases or installation costs. This simplicity in installation reduces potential downtime and costs.
Configuration of the Micropower ST is streamlined with the GET app, which connects via NFC. Through the app, users can check, change, copy, and send configurations between devices in no time.
Micropower ST features an intuitive, user-friendly interface designed with operators in mind. It is easily recognizable from a distance, featuring a graphic display and keypad to minimize the risk of misuse.
The charger series is simple and fast to install, with a pre-mounted wall bracket and a keyhole on top for easy mounting. Designed for convenience, it can be mounted using a cordless screwdriver. Additionally, cable holders are included for wall-mounting, eliminating the need for additional purchases or installation costs. This simplicity in installation reduces potential downtime and costs.
Configuration of the Micropower ST is streamlined with the GET app, which connects via NFC. Through the app, users can check, change, copy, and send configurations between devices in no time.
Micropower ST Series
The Micropower ST charger series offers maximum flexibility with the option to choose from multiple charging algorithms. Compatible with a wide range of Micropower accessories such as the Battery Monitoring Unit, Air-pump, and Aquamatic. The battery charger also allows for adaptation and lowering of the nominal voltage (minimum 6V).
Smart Software Functionality
This charger range incorporates embedded software functionality including features such as Dynamic Power Limitation and Best Battery Choice. Moreover, the series is fully compatible with Micropower’s GET fleet management system, enabling comprehensive optimization and control of battery and charging fleets. Connectivity options include radio, NFC, and USB portal.Ruggedized Product Design
Featuring optimized airflow and coated with IP21 protection, the product design ensures durability and reliability. The airflow is shielded from humidity and dirt, with circuit control for added protection. Sensitive components are safeguarded by a selective coating resistant to acids and oils, maintaining consistent high quality across the Micropower ST charger series.Other Specifications
- High power factor 0.95
- High efficiency 96%
- Low standby power <5W
A19
570 X 267 X 259
